Analysis of spatial factors corresponding to myoepithelial subpopulations

import pandas as pd
import numpy as np
import scanpy as sc
import anndata as ad
import matplotlib.pyplot as plt
import matplotlib as mpl
mpl.rcParams['pdf.fonttype'] = 42
mpl.rcParams['ps.fonttype'] = 42
import os
import sys

import warnings
warnings.filterwarnings("ignore")

Load results

res_path = "/gpfs/gibbs/pi/zhao/jz874/project/jiazhao/inspire_revision/tutorials/new_examples/human_breast_cancer_xenium"
adata = sc.read_h5ad(res_path + "/adata_inspire.h5ad")
basis_df = pd.read_csv(res_path + "/basis_df_inspire.csv", index_col=0)
adata.obsm["factors"] = np.array(adata.obs[["Proportion of spatial factor "+str(j+1) for j in range(50)]].values)

Visualization of gene signatures

topic_id = 30

topic_profile = np.array(basis_df.iloc[topic_id,:].values)
order = np.argsort(-topic_profile)
print(basis_df.columns[order])

potential_marker = list(basis_df.columns[order[:50]])
marker_ours = []
for i in range(len(potential_marker)):
    id_1 = np.argsort(-basis_df[potential_marker[i]])[0]
    id_2 = np.argsort(-basis_df[potential_marker[i]])[1]
    val_1 = basis_df[potential_marker[i]][id_1]
    val_2 = basis_df[potential_marker[i]][id_2]
    if (id_1 == topic_id) & (val_1 >= (val_2*1.5)):
        marker_ours.append(potential_marker[i])
print(marker_ours)

Index(['KRT15', 'SFRP1', 'KRT23', 'PTN', 'TACSTD2', 'KRT7', 'PIGR', 'ALDH1A3',
       'OPRPN', 'KIT',
       ...
       'CD93', 'SFRP4', 'PTPRC', 'ADH1B', 'LYZ', 'IL7R', 'VWF', 'CXCL12',
       'PECAM1', 'POSTN'],
      dtype='object', length=313)
['KRT15', 'SFRP1', 'KRT23', 'PIGR', 'OPRPN', 'ELF5', 'S100A8']

topic_id = 34

topic_profile = np.array(basis_df.iloc[topic_id,:].values)
order = np.argsort(-topic_profile)
print(basis_df.columns[order])

potential_marker = list(basis_df.columns[order[:50]])
marker_ours = []
for i in range(len(potential_marker)):
    id_1 = np.argsort(-basis_df[potential_marker[i]])[0]
    id_2 = np.argsort(-basis_df[potential_marker[i]])[1]
    val_1 = basis_df[potential_marker[i]][id_1]
    val_2 = basis_df[potential_marker[i]][id_2]
    if (id_1 == topic_id) & (val_1 >= (val_2*1.5)):
        marker_ours.append(potential_marker[i])
print(marker_ours)

Index(['KRT6B', 'KRT5', 'KRT16', 'KRT14', 'DSP', 'SERPINA3', 'C5orf46', 'DSC2',
       'MYLK', 'EGFR',
       ...
       'CD8A', 'CD93', 'PTPRC', 'SFRP4', 'LYZ', 'CXCL12', 'ADH1B', 'VWF',
       'IL7R', 'PECAM1'],
      dtype='object', length=313)
['KRT6B', 'KRT16', 'C5orf46', 'DSC2', 'FOXC2', 'CLCA2']

topic_id = 37

topic_profile = np.array(basis_df.iloc[topic_id,:].values)
order = np.argsort(-topic_profile)
print(basis_df.columns[order])

potential_marker = list(basis_df.columns[order[:50]])
marker_ours = []
for i in range(len(potential_marker)):
    id_1 = np.argsort(-basis_df[potential_marker[i]])[0]
    id_2 = np.argsort(-basis_df[potential_marker[i]])[1]
    val_1 = basis_df[potential_marker[i]][id_1]
    val_2 = basis_df[potential_marker[i]][id_2]
    if (id_1 == topic_id) & (val_1 >= (val_2*1.5)):
        marker_ours.append(potential_marker[i])
print(marker_ours)

Index(['MYLK', 'KRT14', 'MYH11', 'KRT5', 'OXTR', 'DST', 'ACTA2', 'ACTG2',
       'SFRP1', 'PTN',
       ...
       'CD3E', 'CXCR4', 'PTPRC', 'CXCL12', 'VWF', 'SFRP4', 'ADH1B', 'LYZ',
       'IL7R', 'PECAM1'],
      dtype='object', length=313)
['KRT14', 'OXTR', 'DST', 'ACTG2', 'PGR']

gene_list = ['KRT15', 'KRT23', 'SFRP1', 'ALDH1A3'] + ['KRT16', 'KRT6B', 'DSC2', 'C5orf46', 'FOXC2'] + ['ACTA2', 'OXTR','ACTG2', 'PGR']


n_factors = 3
gene_set = gene_list
profile = basis_df.iloc[[30,34,37], :]
profile = profile[gene_set]
factor_names = ["Factor: Myoepi 1", "Factor: Myoepi 2", "Factor: Myoepi 3"]

f = plt.figure(figsize=(4.5,1.1))
ax = f.add_subplot(111)
# ax.set_ylabel('Factor', fontsize=14)
im = ax.imshow(profile, cmap='viridis', interpolation='nearest', aspect='auto')
plt.yticks(np.arange(n_factors), factor_names, rotation=0, fontsize=14)
plt.xticks(np.arange(len(gene_set)), gene_set, rotation=90, fontsize=14, style="italic")
# plt.title("Gene signature of factors", fontsize=15)
plt.vlines(x=np.arange(len(gene_set))-0.5, ymin=-0.5, ymax=n_factors-0.5, color="gray", linewidth=1.5, alpha=0.2)
plt.hlines(y=np.arange(n_factors)-0.5, xmin=-0.5, xmax=len(gene_set)-0.5, color="gray", linewidth=1.5, alpha=0.2)
plt.vlines(x=-0.5, ymin=-0.5, ymax=n_factors-0.5, color="k", linewidth=2, alpha=1)
plt.vlines(x=len(gene_set)-0.5, ymin=-0.5, ymax=n_factors-0.5, color="k", linewidth=2, alpha=1)
plt.hlines(y=-0.5, xmin=-0.5, xmax=len(gene_set)-0.5, color="k", linewidth=2, alpha=1)
plt.hlines(y=n_factors-0.5, xmin=-0.5, xmax=len(gene_set)-0.5, color="k", linewidth=2, alpha=1)

plt.show()

Gene expression pattern among myoepithelial factor-related cells

adata.obs["factor"] = "unknown"

factor_prop = adata.obs["Proportion of spatial factor 31"].values
factor_prop_max = np.max(adata.obsm["factors"], axis=1)
adata.obs["factor"][factor_prop >= factor_prop_max] = "Myoepi 1"

factor_prop = adata.obs["Proportion of spatial factor 35"].values
factor_prop_max = np.max(adata.obsm["factors"], axis=1)
adata.obs["factor"][factor_prop >= factor_prop_max] = "Myoepi 2"

factor_prop = adata.obs["Proportion of spatial factor 38"].values
factor_prop_max = np.max(adata.obsm["factors"], axis=1)
adata.obs["factor"][factor_prop >= factor_prop_max] = "Myoepi 3"

adata_raw = sc.read_h5ad("/gpfs/gibbs/pi/zhao/jz874/project/jiazhao/inspire_revision/tumor_microenvironment/Xenium_BC/adata_raw_umap.h5ad")
adata_raw.obs["Myoepi"] = adata.obs["factor"].values.astype(str)
adata_1 = adata_raw[adata_raw.obs["Myoepi"] == "Myoepi 1", :].copy()
adata_2 = adata_raw[adata_raw.obs["Myoepi"] == "Myoepi 2", :].copy()
adata_3 = adata_raw[adata_raw.obs["Myoepi"] == "Myoepi 3", :].copy()
adata_myoepi = ad.concat([adata_1, adata_2, adata_3])

marker_genes_dict = {"Myoepi 1": ['KRT15', 'KRT23', 'SFRP1', 'ALDH1A3'],
                     "Myoepi 2": ['KRT16', 'KRT6B', 'DSC2', 'C5orf46', 'FOXC2'],
                     "Myoepi 3": ['ACTA2', 'OXTR','ACTG2', 'PGR']}

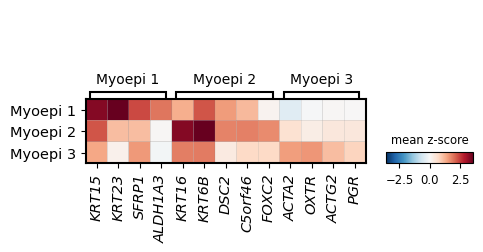

fig, ax = plt.subplots(figsize=(5,2))
mt = sc.pl.matrixplot(
    adata_myoepi,
    marker_genes_dict,
    "Myoepi",
    dendrogram=False,
    colorbar_title="mean z-score",
    # layer="scaled",
    cmap="RdBu_r",
    # cmap="Reds",
    vmax=3.6,
    vmin=-3.6,
    # vmin=0.
    var_group_rotation=0,
    ax=ax,
    show=False
)
ax_main = mt['mainplot_ax']
for l in ax_main.get_xticklabels():
    l.set_style('italic')
    l.set_fontsize(10.5)
for l in ax_main.get_yticklabels():
    l.set_fontsize(10.5)

plt.show()

Correlation analysis of spatial factors and their associated gene expression profiles

factor_myoepi = np.array(adata.obs[["Proportion of spatial factor 31", "Proportion of spatial factor 35", "Proportion of spatial factor 38"]].values)
corr_factor = np.corrcoef(factor_myoepi.T)

import seaborn as sns

plt.figure(figsize = (2*0.9,1.6*0.9))
sns.heatmap(corr_factor, vmin=0., vmax=1.)
plt.yticks(ticks=[0.5,1.5,2.5], labels=["Factor: Myoepi 1", "Factor: Myoepi 2", "Factor: Myoepi 3"], rotation=0, fontsize=12)
plt.xticks(ticks=[0.5,1.5,2.5], labels=["", "", ""])

plt.show()

import seaborn as sns
corr_loading = basis_df.iloc[[30,34,37], :].T.corr()

import seaborn as sns

plt.figure(figsize = (2*0.9,1.6*0.9))
sns.heatmap(corr_loading, vmin=0., vmax=1., cmap="viridis")
plt.yticks(ticks=[0.5,1.5,2.5], labels=["Loadng for myoepi 1", "Loadng for myoepi 2", "Loadng for myoepi 3"], rotation=0, fontsize=12)
plt.xticks(ticks=[0.5,1.5,2.5], labels=["", "", ""])

plt.show()

Construction of the spatial map for myoepithelial factor-related cells

adata = sc.read_h5ad(res_path + "/adata_inspire_with_louvain.h5ad")
adata.obsm["factors"] = np.array(adata.obs[["Proportion of spatial factor "+str(j+1) for j in range(50)]].values)

adata.obs["region"] = "others"
adata.obs["region"][adata.obs["louvain"].values.astype(str) == "2"] = "DCI 1"
adata.obs["region"][adata.obs["louvain"].values.astype(str) == "8"] = "DCI 2"
adata.obs["region"][adata.obs["louvain"].values.astype(str) == "0"] = "Invasive tumor"

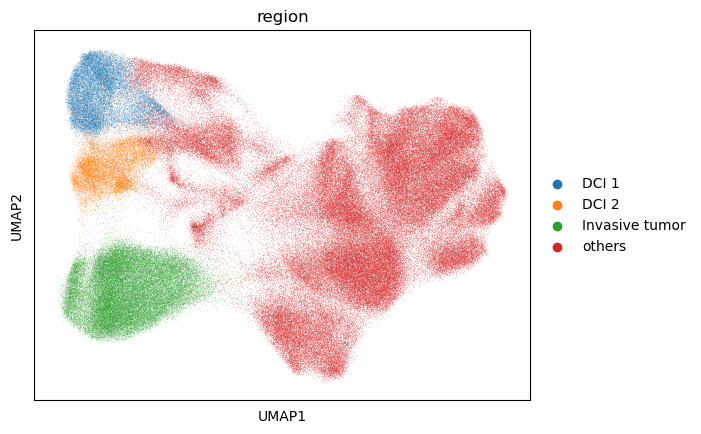

sc.pl.umap(adata, color="region")

adata.obs["factor"] = "unknown"

factor_prop = adata.obs["Proportion of spatial factor 31"].values
factor_prop_max = np.max(adata.obsm["factors"], axis=1)
adata.obs["factor"][factor_prop >= factor_prop_max] = "Myoepi 1"

factor_prop = adata.obs["Proportion of spatial factor 35"].values
factor_prop_max = np.max(adata.obsm["factors"], axis=1)
adata.obs["factor"][factor_prop >= factor_prop_max] = "Myoepi 2"

factor_prop = adata.obs["Proportion of spatial factor 38"].values
factor_prop_max = np.max(adata.obsm["factors"], axis=1)
adata.obs["factor"][factor_prop >= factor_prop_max] = "Myoepi 3"

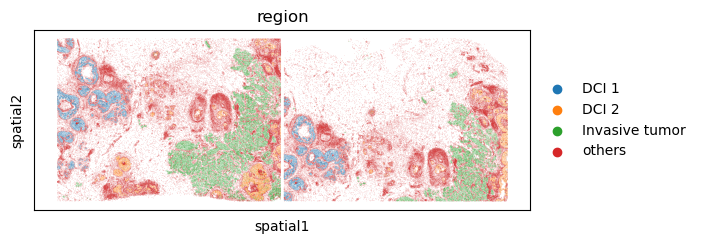

sc.pl.spatial(adata, color="region", spot_size=10.)

sc.pl.spatial(adata, color="factor", spot_size=10.)

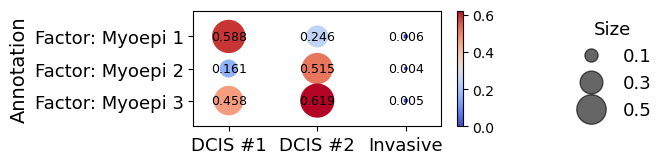

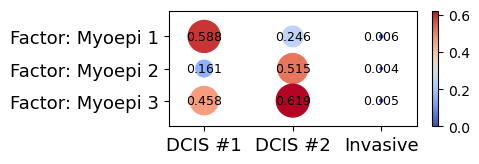

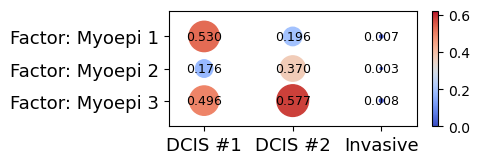

Spatial colocalization analysis between myoepithelial factor-related cells and distinct tumor subtypes

### calculate co-localize
adata_rep1 = adata[adata.obs["slice_label"].values.astype(str) == "0", :].copy()
adata_rep2 = adata[adata.obs["slice_label"].values.astype(str) == "1", :].copy()

loc_rep1 = adata_rep1.obsm["spatial"]
loc_rep2 = adata_rep2.obsm["spatial"]

coloc_val = np.zeros((3,3)) #factor by tumor type

k_nn = 50
adata_tmp = adata_rep1.copy()
loc_tmp = loc_rep1.copy()


tumor_type = "DCI 1"
cell_type = "Myoepi 1"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[0,0] = count / len(idx_tumor)


tumor_type = "DCI 2"
cell_type = "Myoepi 1"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[0,1] = count / len(idx_tumor)


tumor_type = "Invasive tumor"
cell_type = "Myoepi 1"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[0,2] = count / len(idx_tumor)



tumor_type = "DCI 1"
cell_type = "Myoepi 2"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[1,0] = count / len(idx_tumor)


tumor_type = "DCI 2"
cell_type = "Myoepi 2"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[1,1] = count / len(idx_tumor)


tumor_type = "Invasive tumor"
cell_type = "Myoepi 2"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[1,2] = count / len(idx_tumor)


tumor_type = "DCI 1"
cell_type = "Myoepi 3"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[2,0] = count / len(idx_tumor)



tumor_type = "DCI 2"
cell_type = "Myoepi 3"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[2,1] = count / len(idx_tumor)


tumor_type = "Invasive tumor"
cell_type = "Myoepi 3"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[2,2] = count / len(idx_tumor)

f, ax = plt.subplots(figsize=(4, 1.5))
n_topic = 3

for j in range(3):
    y = coloc_val[j, :]
    plt.scatter(np.arange(n_topic), (np.ones(n_topic)*(2-j)), c=y, s=y*900, cmap="coolwarm", vmin=0.0, vmax=0.62)
    y = ["%.3f" % y[t] for t in range(len(y))]
    for t in range(len(y)):
        plt.text(np.arange(n_topic)[t], (np.ones(n_topic)*(2-j))[t], [str(s) for s in list(y)][t], ha='center', va='center', fontsize=9)

plt.xticks(np.arange(3), ["DCIS #1", "DCIS #2", "Invasive"], rotation=0, fontsize=13)
plt.yticks(2-np.arange(3), ["Factor: Myoepi 1", "Factor: Myoepi 2", "Factor: Myoepi 3"], rotation=0, fontsize=13)
plt.ylim(-0.8, 2.8)
plt.xlim(-0.4, 2.4)
plt.colorbar()

plt.show()

coloc_val = np.zeros((3,3)) #factor by tumor type

k_nn = 50
adata_tmp = adata_rep2.copy()
loc_tmp = loc_rep2.copy()


tumor_type = "DCI 1"
cell_type = "Myoepi 1"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[0,0] = count / len(idx_tumor)


tumor_type = "DCI 2"
cell_type = "Myoepi 1"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[0,1] = count / len(idx_tumor)


tumor_type = "Invasive tumor"
cell_type = "Myoepi 1"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[0,2] = count / len(idx_tumor)



tumor_type = "DCI 1"
cell_type = "Myoepi 2"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[1,0] = count / len(idx_tumor)


tumor_type = "DCI 2"
cell_type = "Myoepi 2"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[1,1] = count / len(idx_tumor)


tumor_type = "Invasive tumor"
cell_type = "Myoepi 2"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[1,2] = count / len(idx_tumor)


tumor_type = "DCI 1"
cell_type = "Myoepi 3"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[2,0] = count / len(idx_tumor)



tumor_type = "DCI 2"
cell_type = "Myoepi 3"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[2,1] = count / len(idx_tumor)


tumor_type = "Invasive tumor"
cell_type = "Myoepi 3"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[2,2] = count / len(idx_tumor)

f, ax = plt.subplots(figsize=(4, 1.5))
n_topic = 3

for j in range(3):
    y = coloc_val[j, :]
    plt.scatter(np.arange(n_topic), (np.ones(n_topic)*(2-j)), c=y, s=y*900, cmap="coolwarm", vmin=0.0, vmax=0.62)
    y = ["%.3f" % y[t] for t in range(len(y))]
    for t in range(len(y)):
        plt.text(np.arange(n_topic)[t], (np.ones(n_topic)*(2-j))[t], [str(s) for s in list(y)][t], ha='center', va='center', fontsize=9)

plt.xticks(np.arange(3), ["DCIS #1", "DCIS #2", "Invasive"], rotation=0, fontsize=13)
plt.yticks(2-np.arange(3), ["Factor: Myoepi 1", "Factor: Myoepi 2", "Factor: Myoepi 3"], rotation=0, fontsize=13)
plt.ylim(-0.8, 2.8)
plt.xlim(-0.4, 2.4)
plt.colorbar()

plt.show()

f, ax = plt.subplots(figsize=(4, 1.5))
n_topic = 3

for j in range(3):
    y = coloc_val[j, :]
    plt.scatter(np.arange(n_topic), (np.ones(n_topic)*(2-j)), c=y, s=y*900, cmap="coolwarm", vmin=0.0, vmax=0.62)
    y = ["%.3f" % y[t] for t in range(len(y))]
    for t in range(len(y)):
        plt.text(np.arange(n_topic)[t], (np.ones(n_topic)*(2-j))[t], [str(s) for s in list(y)][t], ha='center', va='center', fontsize=9)

plt.xticks(np.arange(3), ["DCIS #1", "DCIS #2", "Invasive"], rotation=0, fontsize=13)
plt.yticks(2-np.arange(3), ["Factor: Myoepi 1", "Factor: Myoepi 2", "Factor: Myoepi 3"], rotation=0, fontsize=13)
plt.ylim(-0.8, 2.8)
plt.xlim(-0.4, 2.4)
plt.colorbar()

scatter = plt.scatter([0, 0, 0], [0, 0, 0], c="white", alpha=0, s=np.array([0.1,0.3,0.5])*900)
handles, labels = scatter.legend_elements(prop="sizes", alpha=0.6)
legend2 = ax.legend(handles, ["0.1","0.3", "0.5"], title="Size", prop={"size": 13}, loc=(1.5, 0), frameon=False)
plt.ylabel("Annotation", fontsize=14)
plt.setp(legend2.get_title(),fontsize=13)

plt.show()
