Spatial region identification in the human breast cancer data analysis

import pandas as pd
import numpy as np
import scanpy as sc
import anndata as ad
import umap
import os
import scipy.sparse
from matplotlib.cm import get_cmap
import matplotlib.pyplot as plt
import matplotlib as mpl
from matplotlib.lines import Line2D
mpl.rcParams['pdf.fonttype'] = 42
mpl.rcParams['ps.fonttype'] = 42

import INSPIRE

import warnings
warnings.filterwarnings("ignore")

Load results

res_path = "/gpfs/gibbs/pi/zhao/jz874/project/jiazhao/inspire_revision/tutorials/new_examples/human_breast_cancer_xenium"
adata_full = sc.read_h5ad(res_path + "/adata_inspire.h5ad")

Spatial region identification

# clustering
sc.pp.neighbors(adata_full, use_rep="latent", n_neighbors=15)
sc.tl.louvain(adata_full, resolution=1.)

adata_full.write(res_path + "/adata_inspire_with_louvain.h5ad")

adata = sc.read_h5ad(res_path + "/adata_inspire_with_louvain.h5ad")
adata.obsm["factors"] = np.array(adata.obs[["Proportion of spatial factor "+str(j+1) for j in range(50)]].values)

adata.obs["region"] = "others"
adata.obs["region"][adata.obs["louvain"].values.astype(str) == "2"] = "DCI 1"
adata.obs["region"][adata.obs["louvain"].values.astype(str) == "8"] = "DCI 2"
adata.obs["region"][adata.obs["louvain"].values.astype(str) == "0"] = "Invasive tumor"

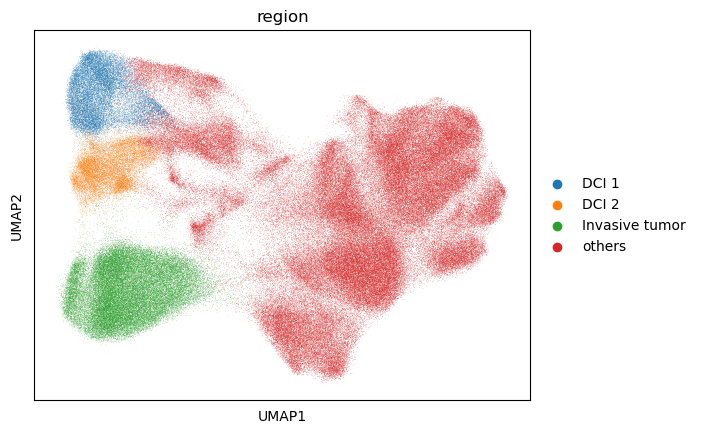

sc.pl.umap(adata, color="region")

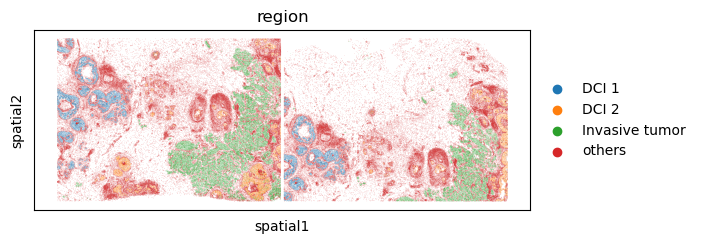

sc.pl.spatial(adata, color="region", spot_size=10.)

xmin_r1, xmax_r1, ymin_r1, ymax_r1 = -7100, -5900, 3800, 5000
xmin_r2, xmax_r2, ymin_r2, ymax_r2 = -2800, -1600, 2500, 3700
xmin_r3, xmax_r3, ymin_r3, ymax_r3 = -2800, -1600, 400, 1600

from matplotlib.lines import Line2D

f = plt.figure(figsize=(13.2,5))
ax = f.add_subplot(1,1,1)

x_coor = adata.obsm["spatial"][:, 0]
y_coor = -adata.obsm["spatial"][:, 1]

colors = ["tab:orange", "tab:blue", "tab:green"]
adata.obs["region_color"] = "#bbbbbb"
adata.obs["region_color"][adata.obs["region"].values.astype(str) == "DCI 1"] = colors[0]
adata.obs["region_color"][adata.obs["region"].values.astype(str) == "DCI 2"] = colors[1]
adata.obs["region_color"][adata.obs["region"].values.astype(str) == "Invasive tumor"] = colors[2]

size = 0.01
scatter0 = ax.scatter(x_coor, y_coor, s=size, rasterized=True, color=adata.obs["region_color"])

plt.hlines(y=ymin_r1, xmin=xmin_r1, xmax=xmax_r1, linewidth=1.5, color='#3b3b3b', linestyles="-")
plt.hlines(y=ymax_r1, xmin=xmin_r1, xmax=xmax_r1, linewidth=1.5, color='#3b3b3b', linestyles="-")
plt.vlines(x=xmin_r1, ymin=ymin_r1, ymax=ymax_r1, linewidth=1.5, color='#3b3b3b', linestyles="-")
plt.vlines(x=xmax_r1, ymin=ymin_r1, ymax=ymax_r1, linewidth=1.5, color='#3b3b3b', linestyles="-")

plt.hlines(y=ymin_r2, xmin=xmin_r2, xmax=xmax_r2, linewidth=1.5, color='#3b3b3b', linestyles="-")
plt.hlines(y=ymax_r2, xmin=xmin_r2, xmax=xmax_r2, linewidth=1.5, color='#3b3b3b', linestyles="-")
plt.vlines(x=xmin_r2, ymin=ymin_r2, ymax=ymax_r2, linewidth=1.5, color='#3b3b3b', linestyles="-")
plt.vlines(x=xmax_r2, ymin=ymin_r2, ymax=ymax_r2, linewidth=1.5, color='#3b3b3b', linestyles="-")

plt.hlines(y=ymin_r3, xmin=xmin_r3, xmax=xmax_r3, linewidth=1.5, color='#3b3b3b', linestyles="-")
plt.hlines(y=ymax_r3, xmin=xmin_r3, xmax=xmax_r3, linewidth=1.5, color='#3b3b3b', linestyles="-")
plt.vlines(x=xmin_r3, ymin=ymin_r3, ymax=ymax_r3, linewidth=1.5, color='#3b3b3b', linestyles="-")
plt.vlines(x=xmax_r3, ymin=ymin_r3, ymax=ymax_r3, linewidth=1.5, color='#3b3b3b', linestyles="-")

ax.axis('equal')

ax = plt.gca()
ax.set_axis_off()

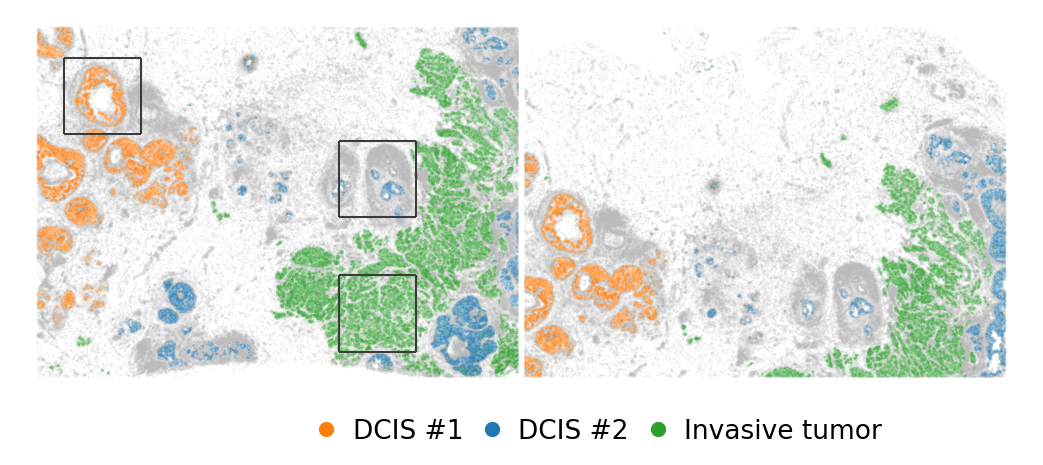

legend_elements_layer = [Line2D([0], [0], marker='o', color="w", label="DCIS #1", markerfacecolor=colors[0], markersize=8),
                         Line2D([0], [0], marker='o', color="w", label="DCIS #2", markerfacecolor=colors[1], markersize=8),
                         Line2D([0], [0], marker='o', color="w", label="Invasive tumor", markerfacecolor=colors[2], markersize=8)]
ax.legend(handles=legend_elements_layer, loc="upper left", bbox_to_anchor=(0.26, 0.), frameon=False,
          markerscale=1.5, fontsize=19, handletextpad=0., ncol=3, columnspacing=0.1)

plt.show()

adata = sc.read_h5ad(res_path + "/adata_inspire_with_louvain.h5ad")

adata.obs["louvain"] = adata.obs["louvain"].values.astype(str)
adata.obs["louvain"][adata.obs["louvain"] == "8"] = "aa"
adata.obs["louvain"][adata.obs["louvain"] == "0"] = "8"
adata.obs["louvain"][adata.obs["louvain"] == "aa"] = "0"
adata.obs["louvain"] = adata.obs["louvain"].values.astype(int)

adata.obs["louvain"] = adata.obs["louvain"].values.astype(str)
adata.obs["louvain"][adata.obs["louvain"] == "8"] = "aa"
adata.obs["louvain"][adata.obs["louvain"] == "4"] = "8"
adata.obs["louvain"][adata.obs["louvain"] == "aa"] = "4"
adata.obs["louvain"] = adata.obs["louvain"].values.astype(int)


from matplotlib.cm import get_cmap
import matplotlib as mpl

# visualize umaps
size = .01

rgb_10 = [i for i in get_cmap('Set3').colors]
rgb_20 = [i for i in get_cmap('tab20').colors]
rgb_20b = [i for i in get_cmap('tab20b').colors]
rgb_dark2 = [i for i in get_cmap('Dark2').colors]
rgb_pst1 = [i for i in get_cmap('Pastel1').colors]
rgb_acc = [i for i in get_cmap('Accent').colors]
rgb2hex_10 = [mpl.colors.rgb2hex(color) for color in rgb_10]
rgb2hex_20 = [mpl.colors.rgb2hex(color) for color in rgb_20]
rgb2hex_20b = [mpl.colors.rgb2hex(color) for color in rgb_20b]
rgb2hex_20b_new = [rgb2hex_20b[i] for i in [0, 3, 4, 7, 8, 11, 12, 15, 16, 19]]
rgb2hex_dark2 = [mpl.colors.rgb2hex(color) for color in rgb_dark2]
rgb2hex_pst1 = [mpl.colors.rgb2hex(color) for color in rgb_pst1]
rgb2hex_acc = [mpl.colors.rgb2hex(color) for color in rgb_acc]
rgb2hex = rgb2hex_20 + rgb2hex_20b_new + rgb2hex_dark2 + rgb2hex_pst1 + rgb2hex_acc


embedding = adata.obsm["X_umap"]

# umap, louvain
f = plt.figure(figsize=(5.5,5))
ax = f.add_subplot(1,1,1)
n_louvain = len(set(adata.obs["louvain"]))
colors = rgb2hex
for i in range(n_louvain):
    ax.scatter(embedding[adata.obs["louvain"].values.astype(str)==str(i), 0],
               embedding[adata.obs["louvain"].values.astype(str)==str(i), 1],
               s=size, c=colors[i], label="cluster "+str(i), rasterized=True, marker=8)
plt.legend(markerscale=100, ncol=3, bbox_to_anchor=(2,1))
plt.show()

colors = rgb2hex
adata.obs["cluster_color"] = ""
for i in range(n_louvain):
    adata.obs["cluster_color"][adata.obs["louvain"].values.astype(str) == str(i)] = colors[i]

f = plt.figure(figsize=(13.2,5))
ax = f.add_subplot(1,1,1)

x_coor = adata.obsm["spatial"][:, 0]
y_coor = -adata.obsm["spatial"][:, 1]

size = 0.001
scatter0 = ax.scatter(x_coor, y_coor, s=size, rasterized=True, color=adata.obs["cluster_color"], marker=8)

ax.axis('equal')

ax = plt.gca()
ax.set_axis_off()

plt.show()
