Analysis of spatial factors corresponding to endothelial subpopulations

import pandas as pd
import numpy as np
import scanpy as sc
import anndata as ad
import matplotlib.pyplot as plt
import matplotlib as mpl
mpl.rcParams['pdf.fonttype'] = 42
mpl.rcParams['ps.fonttype'] = 42
import os
import sys

import warnings
warnings.filterwarnings("ignore")

Load results

res_path = "/gpfs/gibbs/pi/zhao/jz874/project/jiazhao/inspire_revision/tutorials/new_examples/human_breast_cancer_xenium"
adata = sc.read_h5ad(res_path + "/adata_inspire.h5ad")
basis_df = pd.read_csv(res_path + "/basis_df_inspire.csv", index_col=0)
adata.obsm["factors"] = np.array(adata.obs[["Proportion of spatial factor "+str(j+1) for j in range(50)]].values)

Visualization of gene signatures

topic_id = 36

topic_profile = np.array(basis_df.iloc[topic_id,:].values)
order = np.argsort(-topic_profile)
print(basis_df.columns[order])

potential_marker = list(basis_df.columns[order[:50]])
marker_ours = []
for i in range(len(potential_marker)):
    id_1 = np.argsort(-basis_df[potential_marker[i]])[0]
    id_2 = np.argsort(-basis_df[potential_marker[i]])[1]
    val_1 = basis_df[potential_marker[i]][id_1]
    val_2 = basis_df[potential_marker[i]][id_2]
    if (id_1 == topic_id) & (val_1 >= (val_2*1.5)):
        marker_ours.append(potential_marker[i])
print(marker_ours)

Index(['KDR', 'BTNL9', 'CLEC14A', 'RAMP2', 'ESM1', 'CD93', 'CAV1', 'SOX17',
       'EDNRB', 'HOXD9',
       ...
       'TACSTD2', 'SFRP1', 'CYTIP', 'KRT15', 'SFRP4', 'LYZ', 'SERPINA3',
       'PTPRC', 'ADH1B', 'IL7R'],
      dtype='object', length=313)
['KDR', 'BTNL9', 'CLEC14A', 'RAMP2', 'ESM1', 'SOX17', 'SOX18']

topic_id = 40

topic_profile = np.array(basis_df.iloc[topic_id,:].values)
order = np.argsort(-topic_profile)
print(basis_df.columns[order])

potential_marker = list(basis_df.columns[order[:50]])
marker_ours = []
for i in range(len(potential_marker)):
    id_1 = np.argsort(-basis_df[potential_marker[i]])[0]
    id_2 = np.argsort(-basis_df[potential_marker[i]])[1]
    val_1 = basis_df[potential_marker[i]][id_1]
    val_2 = basis_df[potential_marker[i]][id_2]
    if (id_1 == topic_id) & (val_1 >= (val_2*1.5)):
        marker_ours.append(potential_marker[i])
print(marker_ours)

Index(['VWF', 'AQP1', 'PECAM1', 'MMRN2', 'CAVIN2', 'CD93', 'EDN1', 'NOSTRIN',
       'CLEC14A', 'ANGPT2',
       ...
       'KRT14', 'KRT6B', 'CYTIP', 'MS4A1', 'RUNX1', 'CD3E', 'KRT15', 'SFRP4',
       'ADH1B', 'PTPRC'],
      dtype='object', length=313)
['VWF', 'AQP1', 'PECAM1', 'MMRN2', 'CAVIN2', 'EDN1', 'NOSTRIN', 'CLDN5', 'RAPGEF3']

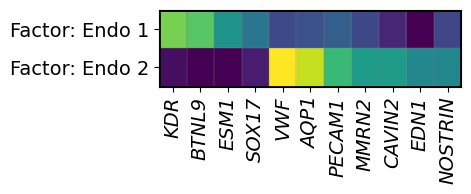

gene_list = gene_list = ['KDR', 'BTNL9', 'ESM1', 'SOX17'] + ['VWF', 'AQP1', 'PECAM1', 'MMRN2', 'CAVIN2', 'EDN1', 'NOSTRIN']

n_factors = 2
gene_set = gene_list
profile = basis_df.iloc[[36,40], :]
profile = profile[gene_set]
factor_names = ["Factor: Endo 1", "Factor: Endo 2"]

f = plt.figure(figsize=(3.9,1.))
ax = f.add_subplot(111)
# ax.set_ylabel('Factor', fontsize=14)
im = ax.imshow(profile, cmap='viridis', interpolation='nearest', aspect='auto')
plt.yticks(np.arange(n_factors), factor_names, rotation=0, fontsize=14)
plt.xticks(np.arange(len(gene_set)), gene_set, rotation=90, fontsize=14, style="italic")
# plt.title("Gene signature of factors", fontsize=15)
plt.vlines(x=np.arange(len(gene_set))-0.5, ymin=-0.5, ymax=n_factors-0.5, color="gray", linewidth=1.5, alpha=0.2)
plt.hlines(y=np.arange(n_factors)-0.5, xmin=-0.5, xmax=len(gene_set)-0.5, color="gray", linewidth=1.5, alpha=0.2)
plt.vlines(x=-0.5, ymin=-0.5, ymax=n_factors-0.5, color="k", linewidth=2, alpha=1)
plt.vlines(x=len(gene_set)-0.5, ymin=-0.5, ymax=n_factors-0.5, color="k", linewidth=2, alpha=1)
plt.hlines(y=-0.5, xmin=-0.5, xmax=len(gene_set)-0.5, color="k", linewidth=2, alpha=1)
plt.hlines(y=n_factors-0.5, xmin=-0.5, xmax=len(gene_set)-0.5, color="k", linewidth=2, alpha=1)

plt.show()

Gene expression pattern among endothelial factor-related cells

adata.obs["factor"] = "unknown"

factor_prop = adata.obs["Proportion of spatial factor 37"].values
factor_prop_max = np.max(adata.obsm["factors"], axis=1)
adata.obs["factor"][factor_prop >= factor_prop_max] = "Endo 1"

factor_prop = adata.obs["Proportion of spatial factor 41"].values
factor_prop_max = np.max(adata.obsm["factors"], axis=1)
adata.obs["factor"][factor_prop >= factor_prop_max] = "Endo 2"

sc.pl.umap(adata, color="factor")

adata_raw = sc.read_h5ad("/gpfs/gibbs/pi/zhao/jz874/project/jiazhao/inspire_revision/tumor_microenvironment/Xenium_BC/adata_raw_umap.h5ad")
adata_raw.obs["Endo"] = adata.obs["factor"].values.astype(str)
adata_1 = adata_raw[adata_raw.obs["Endo"] == "Endo 1", :].copy()
adata_2 = adata_raw[adata_raw.obs["Endo"] == "Endo 2", :].copy()
adata_myoepi = ad.concat([adata_1, adata_2])

marker_genes_dict = {"Endo 1": ['KDR', 'BTNL9', 'ESM1', 'SOX17'],
                     "Endo 2": ['VWF', 'AQP1', 'PECAM1', 'MMRN2', 'CAVIN2', 'EDN1', 'NOSTRIN']}

fig, ax = plt.subplots(figsize=(4.3,2))
mt = sc.pl.matrixplot(
    adata_myoepi,
    marker_genes_dict,
    "Endo",
    dendrogram=False,
    colorbar_title="mean z-score",
    # layer="scaled",
    cmap="RdBu_r",
    # cmap="Reds",
    vmax=3.6,
    vmin=-3.6,
    # vmin=0.
    var_group_rotation=0,
    ax=ax,
    show=False
)
ax_main = mt['mainplot_ax']
for l in ax_main.get_xticklabels():
    l.set_style('italic')
    l.set_fontsize(10.5)
for l in ax_main.get_yticklabels():
    l.set_fontsize(10.5)

plt.show()

Correlation analysis of spatial factors and their associated gene expression profiles

factor_myoepi = np.array(adata.obs[["Proportion of spatial factor 37", "Proportion of spatial factor 41"]].values)
corr_factor = np.corrcoef(factor_myoepi.T)

import seaborn as sns

plt.figure(figsize = (2*0.8*0.65,1.6*0.9*0.65))
sns.heatmap(corr_factor, vmin=0., vmax=1.)
plt.yticks(ticks=[0.5,1.5], labels=["Factor: Endo 1", "Factor: Endo 2"], rotation=0, fontsize=11)
plt.xticks(ticks=[0.5,1.5], labels=["", ""])

plt.show()

import seaborn as sns
corr_loading = basis_df.iloc[[36,40], :].T.corr()

import seaborn as sns

plt.figure(figsize = (2*0.8*0.65,1.6*0.9*0.65))
sns.heatmap(corr_loading, vmin=0., vmax=1., cmap="viridis")
plt.yticks(ticks=[0.5,1.5], labels=["Loadng for endo 1", "Loadng for endo 2"], rotation=0, fontsize=11)
plt.xticks(ticks=[0.5,1.5], labels=["", ""])

plt.show()

Construction of the spatial map for endothelial factor-related cells

adata = sc.read_h5ad(res_path + "/adata_inspire_with_louvain.h5ad")
adata.obsm["factors"] = np.array(adata.obs[["Proportion of spatial factor "+str(j+1) for j in range(50)]].values)

adata.obs["region"] = "others"
adata.obs["region"][adata.obs["louvain"].values.astype(str) == "2"] = "DCI 1"
adata.obs["region"][adata.obs["louvain"].values.astype(str) == "8"] = "DCI 2"
adata.obs["region"][adata.obs["louvain"].values.astype(str) == "0"] = "Invasive tumor"

sc.pl.umap(adata, color="region")

adata.obs["factor"] = "unknown"

factor_prop = adata.obs["Proportion of spatial factor 37"].values
factor_prop_max = np.max(adata.obsm["factors"], axis=1)
adata.obs["factor"][factor_prop >= factor_prop_max] = "Endo 1"

factor_prop = adata.obs["Proportion of spatial factor 41"].values
factor_prop_max = np.max(adata.obsm["factors"], axis=1)
adata.obs["factor"][factor_prop >= factor_prop_max] = "Endo 2"

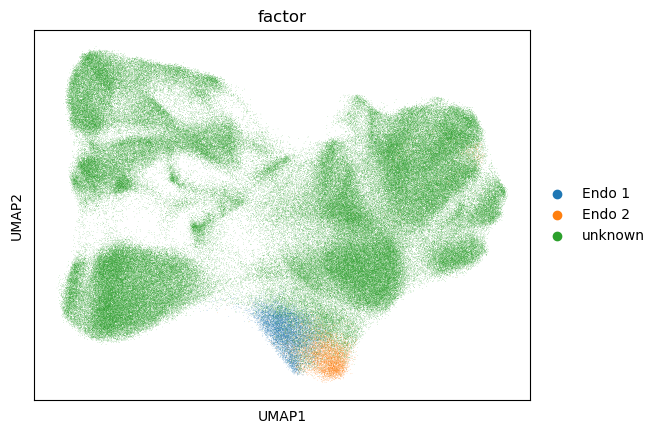

sc.pl.umap(adata, color="factor")

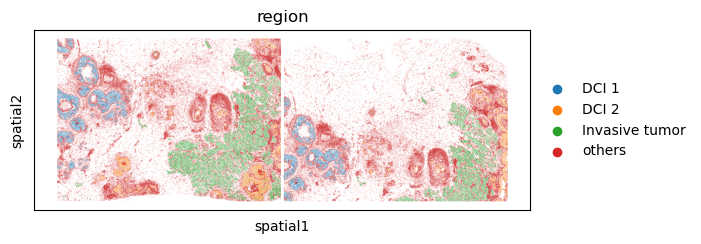

sc.pl.spatial(adata, color="region", spot_size=10.)

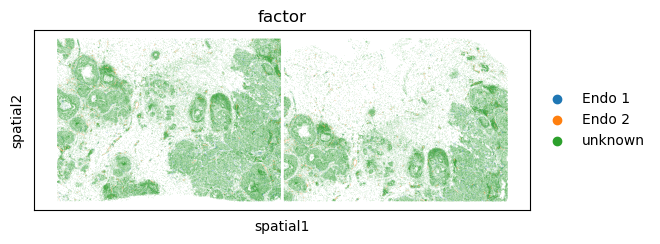

sc.pl.spatial(adata, color="factor", spot_size=10.)

Spatial colocalization analysis between endothelial factor-related cells and distinct tumor subtypes

### calculate co-localize
adata_rep1 = adata[adata.obs["slice_label"].values.astype(str) == "0", :].copy()
adata_rep2 = adata[adata.obs["slice_label"].values.astype(str) == "1", :].copy()

loc_rep1 = adata_rep1.obsm["spatial"]
loc_rep2 = adata_rep2.obsm["spatial"]

coloc_val = np.zeros((2,3)) #factor by tumor type


k_nn = 50
adata_tmp = adata_rep1.copy()
loc_tmp = loc_rep1.copy()


tumor_type = "DCI 1"
cell_type = "Endo 1"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[0,0] = count / len(idx_tumor)


tumor_type = "DCI 2"
cell_type = "Endo 1"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[0,1] = count / len(idx_tumor)


tumor_type = "Invasive tumor"
cell_type = "Endo 1"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[0,2] = count / len(idx_tumor)


tumor_type = "DCI 1"
cell_type = "Endo 2"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[1,0] = count / len(idx_tumor)


tumor_type = "DCI 2"
cell_type = "Endo 2"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[1,1] = count / len(idx_tumor)


tumor_type = "Invasive tumor"
cell_type = "Endo 2"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[1,2] = count / len(idx_tumor)

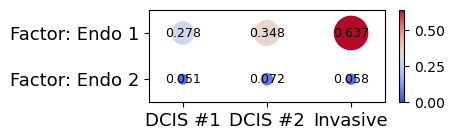

f, ax = plt.subplots(figsize=(3.8, 1.2))
n_topic = 3

for j in range(2):
    y = coloc_val[j, :]
    plt.scatter(np.arange(n_topic), (np.ones(n_topic)*(1-j)), c=y, s=y*900, cmap="coolwarm", vmin=0.0, vmax=0.64)
    y = ["%.3f" % y[t] for t in range(len(y))]
    for t in range(len(y)):
        plt.text(np.arange(n_topic)[t], (np.ones(n_topic)*(1-j))[t], [str(s) for s in list(y)][t], ha='center', va='center', fontsize=9)

plt.xticks(np.arange(3), ["DCIS #1", "DCIS #2", "Invasive"], rotation=0, fontsize=13)
plt.yticks(1-np.arange(2), ["Factor: Endo 1", "Factor: Endo 2"], rotation=0, fontsize=13)
plt.ylim(-0.5, 1.5)
plt.xlim(-0.4, 2.4)
plt.colorbar()

plt.show()

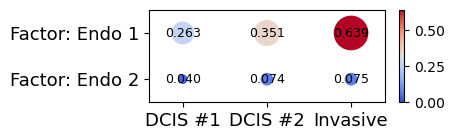

coloc_val = np.zeros((2,3)) #factor by tumor type


k_nn = 50
adata_tmp = adata_rep2.copy()
loc_tmp = loc_rep2.copy()


tumor_type = "DCI 1"
cell_type = "Endo 1"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[0,0] = count / len(idx_tumor)


tumor_type = "DCI 2"
cell_type = "Endo 1"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[0,1] = count / len(idx_tumor)


tumor_type = "Invasive tumor"
cell_type = "Endo 1"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[0,2] = count / len(idx_tumor)


tumor_type = "DCI 1"
cell_type = "Endo 2"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[1,0] = count / len(idx_tumor)


tumor_type = "DCI 2"
cell_type = "Endo 2"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[1,1] = count / len(idx_tumor)


tumor_type = "Invasive tumor"
cell_type = "Endo 2"
from sklearn.neighbors import NearestNeighbors
nbrs = NearestNeighbors(n_neighbors=k_nn).fit(loc_tmp)
distances, indices = nbrs.kneighbors(loc_tmp)
idx_tumor = np.where(adata_tmp.obs["region"] == tumor_type)[0]
indices = indices[idx_tumor, :]
count = 0
for j in range(indices.shape[0]):
    ct_vec = adata_tmp.obs["factor"][indices[j,:]].values.astype(str)
    if np.sum(ct_vec == cell_type) > 0:
        count = count + 1
coloc_val[1,2] = count / len(idx_tumor)

f, ax = plt.subplots(figsize=(3.8, 1.2))
n_topic = 3

for j in range(2):
    y = coloc_val[j, :]
    plt.scatter(np.arange(n_topic), (np.ones(n_topic)*(1-j)), c=y, s=y*900, cmap="coolwarm", vmin=0.0, vmax=0.64)
    y = ["%.3f" % y[t] for t in range(len(y))]
    for t in range(len(y)):
        plt.text(np.arange(n_topic)[t], (np.ones(n_topic)*(1-j))[t], [str(s) for s in list(y)][t], ha='center', va='center', fontsize=9)

plt.xticks(np.arange(3), ["DCIS #1", "DCIS #2", "Invasive"], rotation=0, fontsize=13)
plt.yticks(1-np.arange(2), ["Factor: Endo 1", "Factor: Endo 2"], rotation=0, fontsize=13)
plt.ylim(-0.5, 1.5)
plt.xlim(-0.4, 2.4)
plt.colorbar()

plt.show()
