Analysis of the Slide-seq V2 dataset only

import pandas as pd
import numpy as np
import scanpy as sc
import anndata as ad
import umap
import matplotlib.pyplot as plt
import matplotlib as mpl
from matplotlib.cm import get_cmap

import INSPIRE

import warnings
warnings.filterwarnings("ignore")

Load data

data_dir = "data/SlideseqV2_mouse_hippocampus"
adata_slideseqv2 = sc.read_h5ad(data_dir+"/adata_slideseqv2_Puck_200115_08.h5ad")
adata_slideseqv2.var_names_make_unique()
adata_slideseqv2

data_dir = "data/MERFISH_mouse_hippocampus"
adata_merfish = sc.read_h5ad(data_dir + "/raw_counts_mouse1_coronal.h5ad")
adata_merfish = adata_merfish[adata_merfish.obs["slice_id"] == "co1_slice37", :]
adata_merfish.var_names_make_unique()
adata_merfish.obsm["spatial"] = np.array(adata_merfish.obs[["center_x","center_y"]].values)
adata_merfish.obsm["spatial"][:,1] = -adata_merfish.obsm["spatial"][:,1]

adata_st_list = [adata_merfish, adata_slideseqv2]
adata_st_list, adata_full = INSPIRE.utils.preprocess(adata_st_list=adata_st_list,
                                                     num_hvgs=1000,
                                                     min_genes_qc=6,
                                                     min_cells_qc=6,
                                                     spot_size=30,
                                                     limit_num_genes=True)

Get shared genes among all datasets...
Find 1077 shared genes among datasets.
Finding highly variable genes...
shape of adata 0 before quality control:  (44959, 1077)
shape of adata 0 after quality control:  (44950, 1077)
shape of adata 1 before quality control:  (53208, 1077)
shape of adata 1 after quality control:  (29866, 1019)
Find 936 shared highly variable genes among datasets.
Concatenate datasets as a full anndata for better visualization...

Store counts and library sizes for Poisson modeling...
Normalize data...

data_dir = "data/SlideseqV2_mouse_hippocampus"
adata_slideseqv2 = sc.read_h5ad(data_dir+"/adata_slideseqv2_Puck_200115_08.h5ad")
adata_slideseqv2.var_names_make_unique()
adata_slideseqv2.obs.index = adata_slideseqv2.obs.index + "-1"
adata_slideseqv2 = adata_slideseqv2[adata_st_list[1].obs.index, :]

Follow Scanpy pipeline to perform spatial region identification

adata = adata_slideseqv2

hvg_num = 1000
sc.pp.highly_variable_genes(adata, flavor='seurat_v3', n_top_genes=hvg_num)
hvgs = adata.var[adata.var.highly_variable == True].sort_values(by="highly_variable_rank").index

sc.pp.normalize_total(adata, target_sum=1e4)
sc.pp.log1p(adata)
adata = adata[:, hvgs]
sc.pp.scale(adata, max_value=10)

sc.tl.pca(adata, svd_solver='arpack')
sc.pp.neighbors(adata, n_neighbors=30, n_pcs=30)

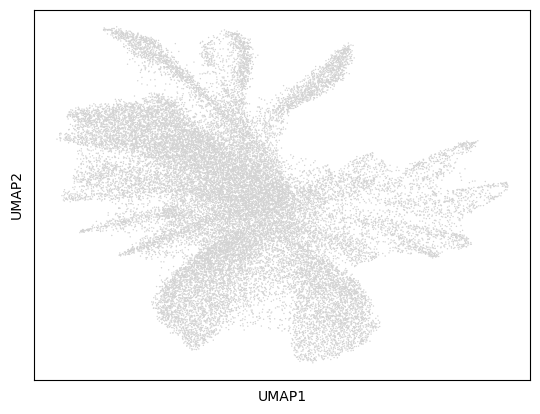

sc.tl.umap(adata)
sc.pl.umap(adata)

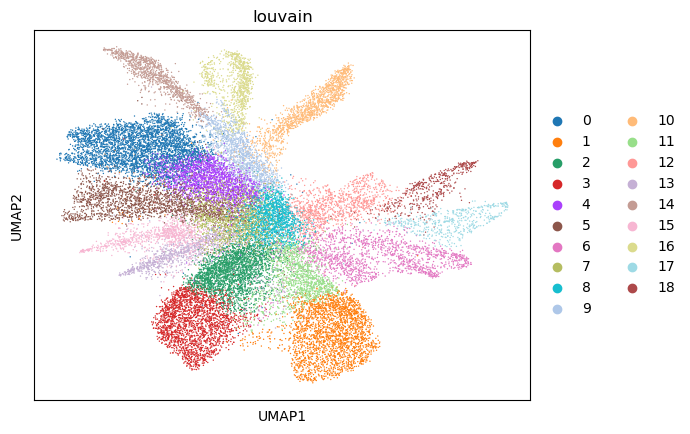

sc.tl.louvain(adata, resolution=1.5)
sc.pl.umap(adata, color=["louvain"])

rgb_10 = [i for i in get_cmap('Set3').colors]
rgb_20 = [i for i in get_cmap('tab20').colors]
rgb_20b = [i for i in get_cmap('tab20b').colors]
rgb_dark2 = [i for i in get_cmap('Dark2').colors]
rgb_pst1 = [i for i in get_cmap('Pastel1').colors]
rgb_acc = [i for i in get_cmap('Accent').colors]
rgb2hex_10 = [mpl.colors.rgb2hex(color) for color in rgb_10]
rgb2hex_20 = [mpl.colors.rgb2hex(color) for color in rgb_20]
rgb2hex_20b = [mpl.colors.rgb2hex(color) for color in rgb_20b]
rgb2hex_20b_new = [rgb2hex_20b[i] for i in [0, 3, 4, 7, 8, 11, 12, 15, 16, 19]]
rgb2hex_dark2 = [mpl.colors.rgb2hex(color) for color in rgb_dark2]
rgb2hex_pst1 = [mpl.colors.rgb2hex(color) for color in rgb_pst1]
rgb2hex_acc = [mpl.colors.rgb2hex(color) for color in rgb_acc]
rgb2hex = rgb2hex_20 + rgb2hex_20b_new + rgb2hex_dark2 + rgb2hex_pst1 + rgb2hex_acc
colors = rgb2hex
adata.obs["louvain_color"] = ""
for i in range(len(set(adata.obs["louvain"].values.astype(str)))):
    adata.obs["louvain_color"][adata.obs["louvain"].values.astype(str) == str(i)] = colors[i]

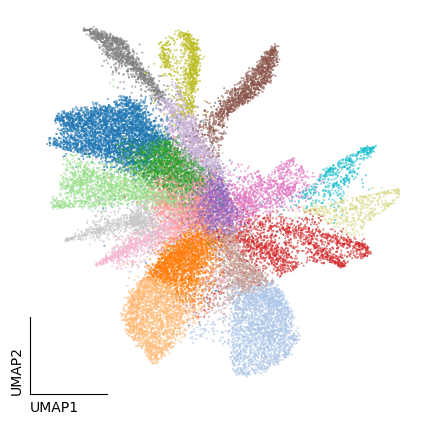

size = 0.1
umap = adata.obsm["X_umap"]
n_cells = umap.shape[0]
np.random.seed(1234)
order = np.arange(n_cells)
np.random.shuffle(order)

f = plt.figure(figsize=(5,5))

ax3 = f.add_subplot(1,1,1)
scatter2 = ax3.scatter(umap[order, 0], umap[order, 1], s=size, c=adata.obs["louvain_color"][order], rasterized=True, marker='o')
ax3.tick_params(axis='both',bottom=False, top=False, left=False, right=False, labelleft=False, labelbottom=False, grid_alpha=0)
ax3.spines['left'].set_bounds(ax3.get_ylim()[0], ax3.get_ylim()[0]+(ax3.get_ylim()[1]-ax3.get_ylim()[0])*0.2)
ax3.spines['bottom'].set_bounds(ax3.get_xlim()[0], ax3.get_xlim()[0]+(ax3.get_xlim()[1]-ax3.get_xlim()[0])*0.2)
ax3.spines['right'].set_bounds(0, 0)
ax3.spines['top'].set_bounds(0, 0)
ax3.set_xlabel('UMAP1', loc='left', fontsize=10)
ax3.set_ylabel('UMAP2', loc='bottom', fontsize=10)
f.subplots_adjust(hspace=0.02, wspace=0.1)

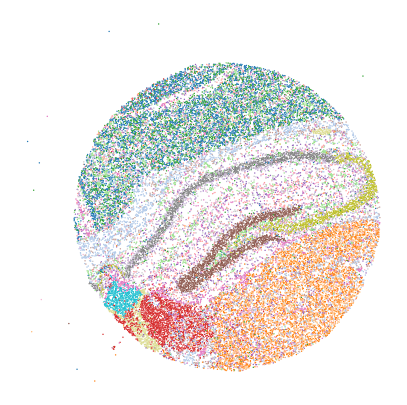

size = 1.
n_louvain = len(set(adata.obs["louvain"]))
f = plt.figure(figsize=(5,5))
ax = f.add_subplot(1,1,1)
ax.axis('equal')
ax.scatter(adata.obsm["spatial"][:, 0],
           -adata.obsm["spatial"][:, 1],
           s=size, facecolors=adata.obs["louvain_color"], edgecolors='none', rasterized=True)
ax.set_axis_off()
f.subplots_adjust(hspace=0.02, wspace=0.1)
plt.show()
