Enrichment or depletion of spatial factors in cortical layers

import pandas as pd
import numpy as np
import scanpy as sc
import anndata as ad
import umap
import matplotlib.pyplot as plt
from matplotlib.cm import get_cmap
import scipy.io
import matplotlib as mpl
mpl.rcParams['pdf.fonttype'] = 42
mpl.rcParams['ps.fonttype'] = 42

import warnings
warnings.filterwarnings("ignore")

Load results

res_dir = "Results/INSPIRE_DLPFC"
adata = sc.read_h5ad(res_dir + "/adata_inspire.h5ad")
basis_df = pd.read_csv(res_dir + "/basis_df_inspire.csv", index_col=0)

Enrichment or depletion analysis

layer_list = list(sorted(set(adata.obs["layer"])))
n_layer = len(layer_list)
n_topic = 20
layer_prop = np.zeros((n_layer, n_topic))
for i, layer_name in enumerate(layer_list):
    adata_tmp = adata[adata.obs["layer"] == layer_name, :].copy()
    prop_tmp = adata_tmp.obs[["proportion-"+str(i) for i in range(n_topic)]]
    layer_prop[i, :] = list(np.mean(prop_tmp, axis=0))

import random
random.seed(1234)

n_try = 1000
permuted = np.zeros((layer_prop.shape[0], layer_prop.shape[1], n_try))
prop_df = adata.obs[["proportion-"+str(i) for i in range(n_topic)]]
layer = adata.obs["layer"].values.astype(str)

for p in range(n_try):
    region_props = np.ones((n_layer, n_topic))
    for j, layer_name in enumerate(layer_list):
        idx = np.arange(prop_df.shape[0])
        random.shuffle(idx)
        prop_permute = prop_df.iloc[idx, :]
        prop_region = prop_permute.loc[layer==layer_name, :]
        region_props[j, :] = np.mean(prop_region, axis=0)
    permuted[:,:,p] = layer_prop - region_props

diff = np.mean(permuted, axis=2) / np.std(permuted, axis=2)

diff = diff[[0,1,4,5], :]
diff = diff[:, [16,17,19]]

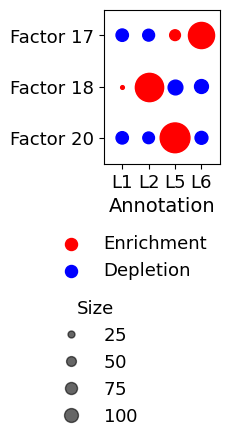

f, ax = plt.subplots(figsize=(1.5,2))
n_topic = diff.shape[1]
n_layer = diff.shape[0]

for j in range(n_layer):
    y = diff[j, :]
    if j==0:
        plt.scatter((np.ones(n_topic)*j)[y>0], np.arange(n_topic)[y>0], c="red", s=y[y>0]*5, label="Enrichment")
        plt.scatter((np.ones(n_topic)*j)[y<0], np.arange(n_topic)[y<0], c="blue", s=-y[y<0]*5, label="Depletion")
    else:
        plt.scatter((np.ones(n_topic)*j)[y>0], np.arange(n_topic)[y>0], c="red", s=y[y>0]*5)
        plt.scatter((np.ones(n_topic)*j)[y<0], np.arange(n_topic)[y<0], c="blue", s=-y[y<0]*5)

plt.yticks(np.arange(diff.shape[1]), ["Factor 17","Factor 18","Factor 20"], rotation=0, fontsize=13)
plt.xticks(np.arange(diff.shape[0]), ["L1","L2","L5","L6"], rotation=0, fontsize=13)
plt.xlim(-0.7, n_layer-0.3)
plt.ylim(2.5, -0.5)

scatter = plt.scatter([0, 0, 0, 0], [0, 0, 0, 0], c="white", alpha=0, s=[25, 50, 75, 100])
handles, labels = scatter.legend_elements(prop="sizes", alpha=0.6)
legend2 = ax.legend(handles, labels, title="Size", prop={"size": 13}, loc=(-0.5, -1.75), frameon=False)
plt.xlabel("Annotation", fontsize=14)
plt.setp(legend2.get_title(),fontsize=13)

f.add_subplot(111, frameon=False)
plt.tick_params(labelcolor='none', which='both', top=False, bottom=False, left=False, right=False)
plt.scatter([], [], c="red", s=75, label="Enrichment")
plt.scatter([], [], c="blue", s=75, label="Depletion")
lgnd = plt.legend(scatterpoints=1, loc=(-0.5, -0.8), frameon=False, prop={"size": 13})
plt.rcParams['legend.title_fontsize'] = 13

plt.show()
