Reconstruct 3D model of the mouse embryo by spatially register adjacent 2D slices

import pandas as pd
import numpy as np
import scanpy as sc
import anndata as ad
import umap
import os
import scipy.sparse
import matplotlib.pyplot as plt
from matplotlib.cm import get_cmap
import matplotlib as mpl

import INSPIRE

import warnings
warnings.filterwarnings("ignore")

Load results

res_path = "Results/INSPIRE_3d_reconstruction"
adata_full = sc.read_h5ad(res_path + "/adata_inspire.h5ad")

Build the 3D model by spatially register adjacent slices

n_slice = len(set(adata_full.obs.slice_label))
adata_st_list = [adata_full[adata_full.obs.slice_label.values.astype(str) == str(i), :].copy() for i in range(n_slice)]
for i_slice in range(n_slice):
    adata_st_list[i_slice].obsm["spatial_regi"] = adata_st_list[i_slice].obsm["spatial"]

n_sample = 20000
for i_slice in range(n_slice-1):
    print("Spatially register slice", str(i_slice+1), "with slice", str(i_slice+2))

    # visualize before alignment
    f = plt.figure(figsize=(4,2))
    ax = f.add_subplot(1,1,1)
    ax.axis('equal')

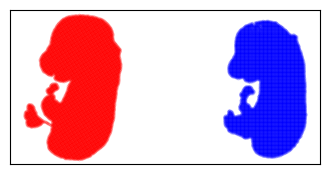

    ax.scatter(adata_st_list[i_slice].obsm["spatial_regi"][:,0], -adata_st_list[i_slice].obsm["spatial_regi"][:,1], c="red", s=.001, alpha=0.5)
    ax.scatter(adata_st_list[i_slice+1].obsm["spatial_regi"][:,0], -adata_st_list[i_slice+1].obsm["spatial_regi"][:,1], c="blue", s=.001, alpha=0.5)
    ax.tick_params(axis='both',bottom=False, top=False, left=False, right=False, labelleft=False, labelbottom=False, grid_alpha=0)
    plt.show()

    # alignment
    loc0 = adata_st_list[i_slice].obsm["spatial_regi"]
    loc1 = adata_st_list[i_slice+1].obsm["spatial_regi"]

    latent_0 = adata_full[adata_st_list[i_slice].obs.index, :].obsm['latent']
    latent_1 = adata_full[adata_st_list[i_slice+1].obs.index, :].obsm['latent']

    np.random.seed(1234)
    ss_0 = np.random.choice(latent_0.shape[0], size=n_sample, replace=False)
    ss_1 = np.random.choice(latent_1.shape[0], size=n_sample, replace=False)
    loc0 = loc0[ss_0, :]
    loc1 = loc1[ss_1, :]
    latent_0 = latent_0[ss_0, :]
    latent_1 = latent_1[ss_1, :]

    mnn_mat = INSPIRE.utils.acquire_pairs(latent_0, latent_1, k=1, metric='euclidean')
    idx_0 = []
    idx_1 = []
    for i in range(mnn_mat.shape[0]):
        if np.sum(mnn_mat[i, :]) > 0:
            nns = np.where(mnn_mat[i, :] == 1)[0]
            for j in list(nns):
                idx_0.append(i)
                idx_1.append(j)

    loc0_pair = loc0[idx_0, :]
    loc1_pair = loc1[idx_1, :]

    T,_,_ = INSPIRE.utils.best_fit_transform(loc1_pair, loc0_pair)

    loc1 = adata_st_list[i_slice+1].obsm["spatial_regi"]
    loc1_new = INSPIRE.utils.transform(loc1, T)
    adata_st_list[i_slice+1].obsm["spatial_regi"] = loc1_new

    f = plt.figure(figsize=(4,2))
    ax = f.add_subplot(1,1,1)
    ax.axis('equal')

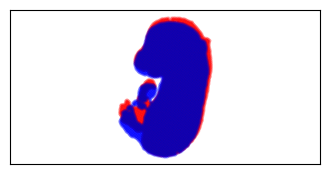

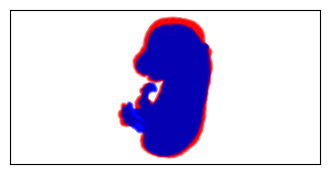

    ax.scatter(adata_st_list[i_slice].obsm["spatial_regi"][:,0], -adata_st_list[i_slice].obsm["spatial_regi"][:,1], c="red", s=.001, alpha=0.5)
    ax.scatter(adata_st_list[i_slice+1].obsm["spatial_regi"][:,0], -adata_st_list[i_slice+1].obsm["spatial_regi"][:,1], c="blue", s=.001, alpha=0.5)
    ax.tick_params(axis='both',bottom=False, top=False, left=False, right=False, labelleft=False, labelbottom=False, grid_alpha=0)
    plt.show()

Spatially register slice 1 with slice 2

Spatially register slice 2 with slice 3

Spatially register slice 3 with slice 4

Spatially register slice 4 with slice 5

# form 3d location

for i_slice in range(n_slice):
    loc_tmp = np.ones((adata_st_list[i_slice].shape[0], 3)) * i_slice
    loc_tmp[:,:2] = adata_st_list[i_slice].obsm["spatial_regi"]
    adata_st_list[i_slice].obsm["spatial_3d"] = loc_tmp

fig = plt.figure(figsize=(8,8))
ax = fig.add_subplot(111, projection='3d')

size = .05

# draw slices
for i_slice in range(n_slice):

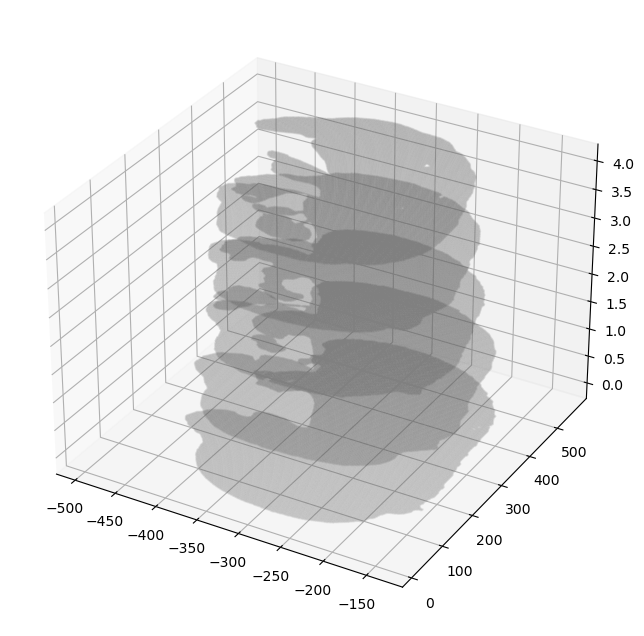

    ax.scatter(adata_st_list[i_slice].obsm["spatial_3d"][:,0],
               adata_st_list[i_slice].obsm["spatial_3d"][:,1],
               adata_st_list[i_slice].obsm["spatial_3d"][:,2], s=size, c="gray", alpha=0.1)

plt.show()

Save result

# save 3d spatial locations
res_path = "Results/INSPIRE_3d_reconstruction"
for i in range(n_slice):
    adata_st_list[i].write(res_path + "/adata_3d_spatial_"+str(i)+".h5ad")
