Run INSPIRE on the mouse brain slices with different views
In this tutorial, we show INSPIRE’s analysis of the Visium datasets of mouse brains, which integrates three slices offering distinct views of the brain.
The spatial transcriptomics data are publicly available.
The sagittal anterior section: https://www.10xgenomics.com/datasets/mouse-brain-serial-section-2-sagittal-anterior-1-standard-1-0-0.
The sagittal posterior section: https://www.10xgenomics.com/datasets/mouse-brain-serial-section-2-sagittal-posterior-1-standard-1-0-0.
The coronal section: https://www.10xgenomics.com/datasets/mouse-brain-section-coronal-1-standard-1-1-0.
Import packages
[1]:
import pandas as pd
import numpy as np
import scanpy as sc
import anndata as ad
import umap
import matplotlib.pyplot as plt
import matplotlib as mpl
from matplotlib.cm import get_cmap
import INSPIRE
import warnings
warnings.filterwarnings("ignore")
Load data
[2]:
data_dir = "data/Visium_mouse_brain/Visium_sagittal-anterior2"
adata_st1 = sc.read_visium(path=data_dir,
count_file="V1_Mouse_Brain_Sagittal_Anterior_Section_2_filtered_feature_bc_matrix.h5")
adata_st1.var_names_make_unique()
data_dir = "data/Visium_mouse_brain/Visium_sagittal-posterior2"
adata_st2 = sc.read_visium(path=data_dir,
count_file="V1_Mouse_Brain_Sagittal_Posterior_Section_2_filtered_feature_bc_matrix.h5")
adata_st2.var_names_make_unique()
data_dir = "data/Visium_mouse_brain/Visium_coronal"
adata_st3 = sc.read_visium(path=data_dir,
count_file="V1_Adult_Mouse_Brain_filtered_feature_bc_matrix.h5")
adata_st3.var_names_make_unique()
adata_st_list = [adata_st1, adata_st2, adata_st3]
Data preprocessing
[3]:
adata_st_list, adata_full = INSPIRE.utils.preprocess(adata_st_list=adata_st_list,
num_hvgs=6000,
min_genes_qc=50,
min_cells_qc=50,
spot_size=100)
Finding highly variable genes...
shape of adata 0 before quality control: (2825, 31040)
shape of adata 0 after quality control: (2825, 13942)
shape of adata 1 before quality control: (3293, 31040)
shape of adata 1 after quality control: (3293, 13961)
shape of adata 2 before quality control: (2702, 32272)
shape of adata 2 after quality control: (2702, 14801)
Find 3035 shared highly variable genes among datasets.
Concatenate datasets as a full anndata for better visualization...
Store counts and library sizes for Poisson modeling...
Normalize data...
Build spatial graph
[4]:
adata_st_list = INSPIRE.utils.build_graph_GAT(adata_st_list=adata_st_list,
rad_coef=1.1)
Start building graphs...
Calculate radius cutoff based on 'rad_coef' and mininal distance between spots/cells within a dataset...
Radius for graph connection is 150.7000.
Build graphs for GAT networks
5.8251 neighbors per cell on average.
5.8445 neighbors per cell on average.
5.8150 neighbors per cell on average.
Run INSPIRE model
[5]:
model = INSPIRE.model.Model_GAT(adata_st_list=adata_st_list,
n_spatial_factors=40,
n_training_steps=10000,
coef_geom=0.01,
margin_warmup_step=50
)
[6]:
model.train()
0%| | 2/10000 [00:00<33:32, 4.97it/s]
Step: 0, d_loss: 2.7331, Loss: 5649.3413, recon_loss: 4937.4263, fe_loss: 106.2767, geom_loss: 186.7055, beta_loss: 602.2854, gan_loss: 1.4859
5%|▌ | 502/10000 [00:47<14:58, 10.57it/s]
Step: 500, d_loss: 0.9521, Loss: -697.1736, recon_loss: -1522.8391, fe_loss: 49.7516, geom_loss: 319.1621, beta_loss: 765.7716, gan_loss: 6.9507
10%|█ | 1002/10000 [01:34<14:11, 10.56it/s]
Step: 1000, d_loss: 1.1518, Loss: -5433.9204, recon_loss: -6314.9639, fe_loss: 48.9136, geom_loss: 283.6976, beta_loss: 822.6927, gan_loss: 6.6002
15%|█▌ | 1502/10000 [02:22<13:27, 10.52it/s]
Step: 1500, d_loss: 0.8800, Loss: -8635.1436, recon_loss: -9520.8125, fe_loss: 48.3969, geom_loss: 280.2561, beta_loss: 828.5854, gan_loss: 5.8837
20%|██ | 2002/10000 [03:09<12:40, 10.51it/s]
Step: 2000, d_loss: 1.0886, Loss: -10634.0869, recon_loss: -11507.7441, fe_loss: 48.0906, geom_loss: 327.4163, beta_loss: 814.7021, gan_loss: 7.5897
25%|██▌ | 2502/10000 [03:57<11:52, 10.52it/s]
Step: 2500, d_loss: 0.6013, Loss: -11879.6201, recon_loss: -12727.9561, fe_loss: 47.7858, geom_loss: 293.8451, beta_loss: 790.5606, gan_loss: 7.0507
30%|███ | 3002/10000 [04:44<11:05, 10.52it/s]
Step: 3000, d_loss: 0.4609, Loss: -12673.8145, recon_loss: -13485.7129, fe_loss: 47.6291, geom_loss: 268.9218, beta_loss: 754.7885, gan_loss: 6.7918
35%|███▌ | 3502/10000 [05:32<10:17, 10.52it/s]
Step: 3500, d_loss: 0.3432, Loss: -13212.7666, recon_loss: -13987.4004, fe_loss: 47.4585, geom_loss: 282.9538, beta_loss: 717.3875, gan_loss: 6.9583
40%|████ | 4002/10000 [06:19<09:29, 10.53it/s]
Step: 4000, d_loss: 0.3514, Loss: -13593.1621, recon_loss: -14329.6201, fe_loss: 47.3218, geom_loss: 315.2289, beta_loss: 677.1065, gan_loss: 8.8773
45%|████▌ | 4502/10000 [07:07<08:42, 10.52it/s]
Step: 4500, d_loss: 0.2005, Loss: -13872.1143, recon_loss: -14582.3066, fe_loss: 47.1982, geom_loss: 309.1494, beta_loss: 651.4415, gan_loss: 8.4611
50%|█████ | 5002/10000 [07:54<07:55, 10.52it/s]
Step: 5000, d_loss: 0.1906, Loss: -14063.4629, recon_loss: -14748.6152, fe_loss: 47.1153, geom_loss: 293.2274, beta_loss: 626.4838, gan_loss: 8.6207
55%|█████▌ | 5502/10000 [08:42<07:07, 10.52it/s]
Step: 5500, d_loss: 0.1516, Loss: -14208.2852, recon_loss: -14885.7842, fe_loss: 47.0133, geom_loss: 296.2711, beta_loss: 618.7848, gan_loss: 8.7371
60%|██████ | 6002/10000 [09:29<06:19, 10.53it/s]
Step: 6000, d_loss: 0.1653, Loss: -14299.7744, recon_loss: -14972.8652, fe_loss: 46.9462, geom_loss: 301.5018, beta_loss: 614.2016, gan_loss: 8.9290
65%|██████▌ | 6502/10000 [10:17<05:32, 10.52it/s]
Step: 6500, d_loss: 0.1506, Loss: -14376.8828, recon_loss: -15043.1172, fe_loss: 46.8753, geom_loss: 267.8856, beta_loss: 607.7770, gan_loss: 8.9038
70%|███████ | 7002/10000 [11:04<04:44, 10.53it/s]
Step: 7000, d_loss: 0.1917, Loss: -14439.1348, recon_loss: -15102.8418, fe_loss: 46.8440, geom_loss: 254.6296, beta_loss: 605.3604, gan_loss: 8.9569
75%|███████▌ | 7502/10000 [11:52<03:57, 10.52it/s]
Step: 7500, d_loss: 0.1680, Loss: -14515.0127, recon_loss: -15175.0264, fe_loss: 46.7815, geom_loss: 236.3670, beta_loss: 601.6378, gan_loss: 9.2319
80%|████████ | 8002/10000 [12:39<03:09, 10.52it/s]
Step: 8000, d_loss: 0.1168, Loss: -14633.4863, recon_loss: -15293.2607, fe_loss: 46.7422, geom_loss: 230.3314, beta_loss: 601.5674, gan_loss: 9.1608
85%|████████▌ | 8502/10000 [13:27<02:22, 10.52it/s]
Step: 8500, d_loss: 0.0763, Loss: -14748.2803, recon_loss: -15408.4658, fe_loss: 46.6535, geom_loss: 226.3674, beta_loss: 602.0280, gan_loss: 9.2405
90%|█████████ | 9002/10000 [14:14<01:34, 10.52it/s]
Step: 9000, d_loss: 0.0787, Loss: -14822.2188, recon_loss: -15482.0605, fe_loss: 46.5831, geom_loss: 221.9920, beta_loss: 601.6428, gan_loss: 9.3964
95%|█████████▌| 9502/10000 [15:01<00:47, 10.53it/s]
Step: 9500, d_loss: 0.0636, Loss: -14866.1875, recon_loss: -15525.4297, fe_loss: 46.5500, geom_loss: 237.7550, beta_loss: 600.9050, gan_loss: 9.4096
100%|██████████| 10000/10000 [15:49<00:00, 10.53it/s]
Access spot representations, proportions of spatial factors in spots, and gene loading matrix
In this example, we also evalute the the discriminator scores on spots.
[7]:
adata_full, basis_df, d_score_dict = model.eval(adata_full, eval_d_scores=True)
basis = np.array(basis_df.values)
Add cell/spot proportions of spatial factors into adata_full.obs...
Add cell/spot latent representations into adata_full.obsm['latent']...
Evaluate discriminator scores...

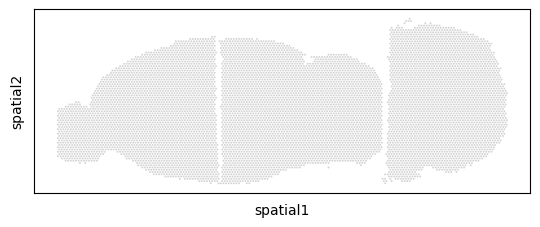

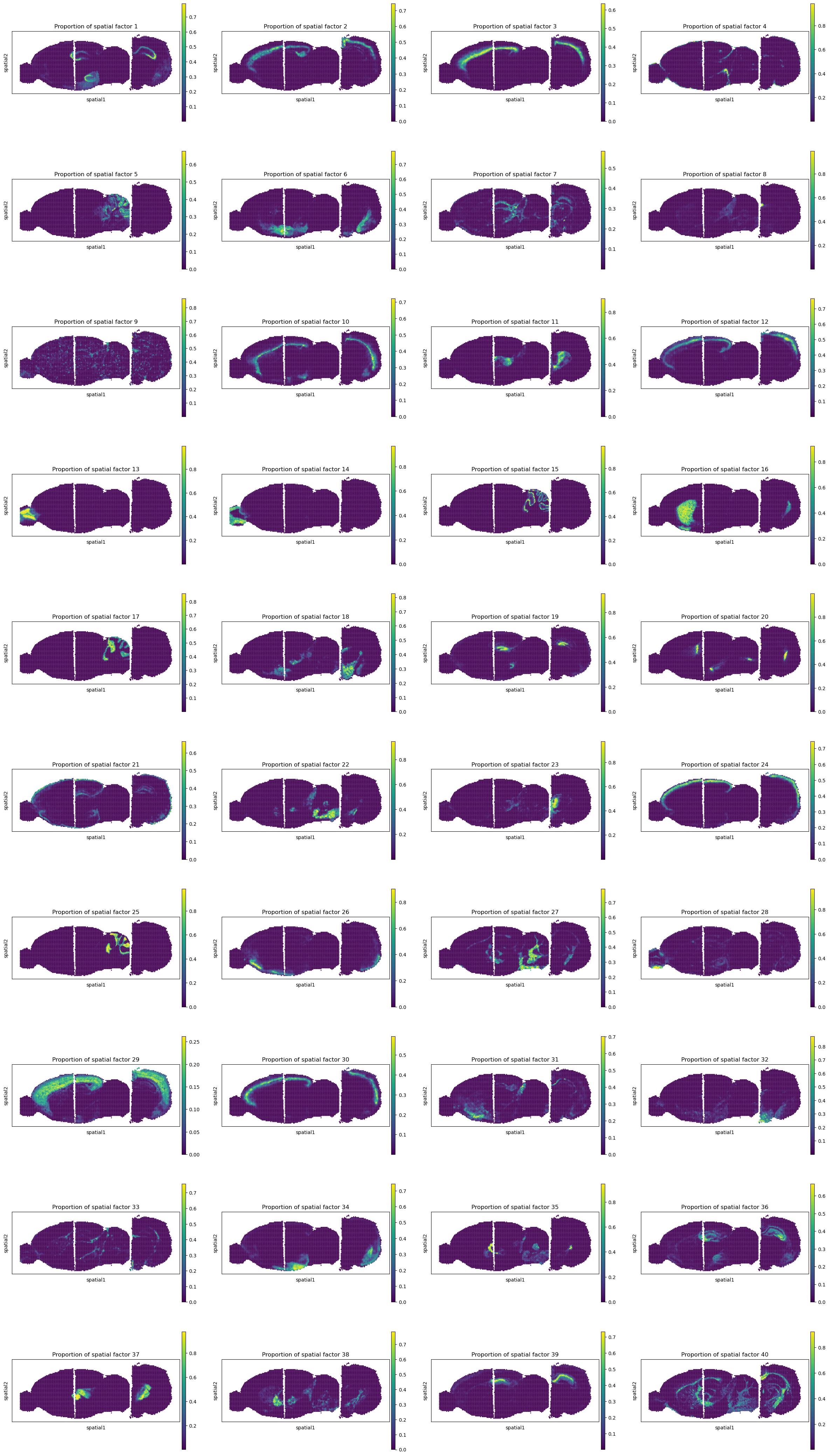

Spatial distributions of spatial factors in tissues
[8]:
sc.pl.spatial(adata_full, color=["Proportion of spatial factor "+str(i+1) for i in range(40)], spot_size=150.)
Spot representations and spatial domain identification
[9]:
# calculate 2D UMAP coordinate of spots based on INSPIRE's learned spot representations.
reducer = umap.UMAP(n_neighbors=30,
n_components=2,
metric="correlation",
n_epochs=None,
learning_rate=1.0,
min_dist=0.3,
spread=1.0,
set_op_mix_ratio=1.0,
local_connectivity=1,
repulsion_strength=1,
negative_sample_rate=5,
a=None,
b=None,
random_state=1234,
metric_kwds=None,
angular_rp_forest=False,
verbose=True)
embedding = reducer.fit_transform(adata_full.obsm['latent'])
adata_full.obsm["X_umap"] = embedding
adata_full.obs["slice"] = adata_full.obs["slice"].values.astype(str)
UMAP(angular_rp_forest=True, local_connectivity=1, metric='correlation', min_dist=0.3, n_neighbors=30, random_state=1234, repulsion_strength=1, verbose=True)
Wed Aug 21 10:46:27 2024 Construct fuzzy simplicial set
Wed Aug 21 10:46:27 2024 Finding Nearest Neighbors
Wed Aug 21 10:46:27 2024 Building RP forest with 10 trees
Wed Aug 21 10:46:29 2024 NN descent for 13 iterations
1 / 13
2 / 13
Stopping threshold met -- exiting after 2 iterations
Wed Aug 21 10:46:38 2024 Finished Nearest Neighbor Search
Wed Aug 21 10:46:39 2024 Construct embedding
completed 0 / 500 epochs
completed 50 / 500 epochs
completed 100 / 500 epochs
completed 150 / 500 epochs
completed 200 / 500 epochs
completed 250 / 500 epochs
completed 300 / 500 epochs
completed 350 / 500 epochs
completed 400 / 500 epochs
completed 450 / 500 epochs
Wed Aug 21 10:46:59 2024 Finished embedding

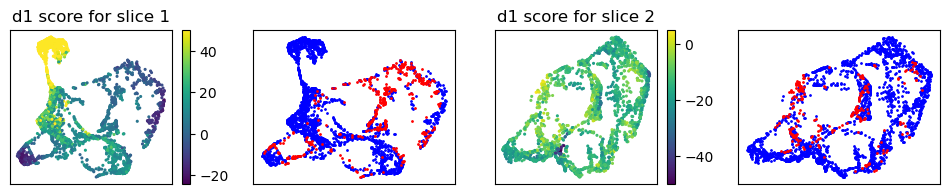

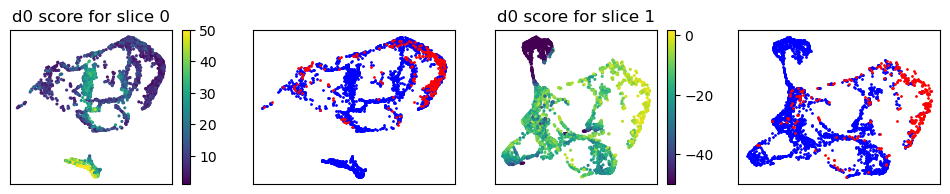

Visualization of discriminator scores.
[10]:
n_slices = len(adata_st_list)
for i in range(n_slices-1):
# slice i - slice i+1
d0 = d_score_dict[i][0]
d1 = d_score_dict[i][1]
margin = model.margin
f = plt.figure(figsize=(12,2))
ax1 = f.add_subplot(1,4,1)
scatter1 = ax1.scatter(adata_full[adata_st_list[i].obs.index, :].obsm["X_umap"][:,0],
adata_full[adata_st_list[i].obs.index, :].obsm["X_umap"][:,1],
c=d0, s=1.5)
ax1.tick_params(axis='both',bottom=False, top=False, left=False, right=False, labelleft=False, labelbottom=False, grid_alpha=0)
plt.colorbar(scatter1, ax=ax1)
ax1.set_title("d"+str(i)+" score for slice "+str(i))
ax1 = f.add_subplot(1,4,2)
ad_tmp = adata_full[adata_st_list[i].obs.index, :].copy()
scatter = ax1.scatter(ad_tmp[(d0 < -margin) | (d0 > margin)].obsm["X_umap"][:,0],
ad_tmp[(d0 < -margin) | (d0 > margin)].obsm["X_umap"][:,1],
c="blue", s=1., label="inactive")
scatter = ax1.scatter(ad_tmp[(d0 > -margin) & (d0 < margin)].obsm["X_umap"][:,0],
ad_tmp[(d0 > -margin) & (d0 < margin)].obsm["X_umap"][:,1],
c="red", s=1., label="active")
ax1.tick_params(axis='both',bottom=False, top=False, left=False, right=False, labelleft=False, labelbottom=False, grid_alpha=0)
ax2 = f.add_subplot(1,4,3)
scatter2 = ax2.scatter(adata_full[adata_st_list[i+1].obs.index, :].obsm["X_umap"][:,0],
adata_full[adata_st_list[i+1].obs.index, :].obsm["X_umap"][:,1],
c=d1, s=1.5)
ax2.tick_params(axis='both',bottom=False, top=False, left=False, right=False, labelleft=False, labelbottom=False, grid_alpha=0)
ax2.set_title("d"+str(i)+" score for slice "+str(i+1))
plt.colorbar(scatter2, ax=ax2)
ax2 = f.add_subplot(1,4,4)
ad_tmp = adata_full[adata_st_list[i+1].obs.index, :].copy()
scatter = ax2.scatter(ad_tmp[(d1 < -margin) | (d1 > margin)].obsm["X_umap"][:,0],
ad_tmp[(d1 < -margin) | (d1 > margin)].obsm["X_umap"][:,1],
c="blue", s=1., label="inactive")
scatter = ax2.scatter(ad_tmp[(d1 > -margin) & (d1 < margin)].obsm["X_umap"][:,0],
ad_tmp[(d1 > -margin) & (d1 < margin)].obsm["X_umap"][:,1],
c="red", s=1., label="active")
ax2.tick_params(axis='both',bottom=False, top=False, left=False, right=False, labelleft=False, labelbottom=False, grid_alpha=0)
plt.show()
plt.close()
[11]:
# clustering
sc.pp.neighbors(adata_full, use_rep="latent", n_neighbors=20)
sc.tl.louvain(adata_full, resolution=2.)
Visualization of spot representations.
[12]:
# visualize umaps
size = 3.
rgb_10 = [i for i in get_cmap('Set3').colors]
rgb_20 = [i for i in get_cmap('tab20').colors]
rgb_20b = [i for i in get_cmap('tab20b').colors]
rgb_dark2 = [i for i in get_cmap('Dark2').colors]
rgb_pst1 = [i for i in get_cmap('Pastel1').colors]
rgb_acc = [i for i in get_cmap('Accent').colors]
rgb2hex_10 = [mpl.colors.rgb2hex(color) for color in rgb_10]
rgb2hex_20 = [mpl.colors.rgb2hex(color) for color in rgb_20]
rgb2hex_20b = [mpl.colors.rgb2hex(color) for color in rgb_20b]
rgb2hex_20b_new = [rgb2hex_20b[i] for i in [0, 3, 4, 7, 8, 11, 12, 15, 16, 19]]
rgb2hex_dark2 = [mpl.colors.rgb2hex(color) for color in rgb_dark2]
rgb2hex_pst1 = [mpl.colors.rgb2hex(color) for color in rgb_pst1]
rgb2hex_acc = [mpl.colors.rgb2hex(color) for color in rgb_acc]
rgb2hex = rgb2hex_20 + rgb2hex_20b_new + rgb2hex_dark2 + rgb2hex_pst1 + rgb2hex_acc
embedding = adata_full.obsm["X_umap"]

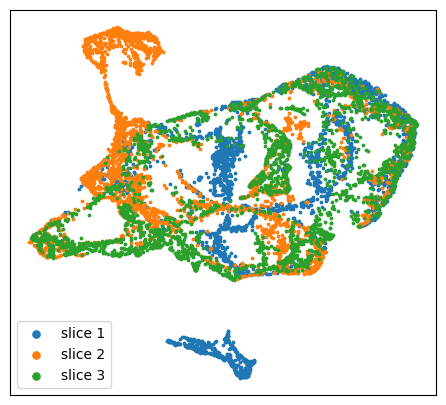

# umap, slice
f = plt.figure(figsize=(5.5,5))
ax = f.add_subplot(1,1,1)
colors = ["tab:blue", "tab:orange","tab:green"]
for i in range(len(set(adata_full.obs["slice"]))):
ax.scatter(embedding[adata_full.obs["slice"]==str(i), 0], embedding[adata_full.obs["slice"]==str(i), 1],
s=size, c=colors[i], label="slice "+str(i+1))
ax.tick_params(axis='both',bottom=False, top=False, left=False, right=False, labelleft=False, labelbottom=False, grid_alpha=0)
plt.legend(markerscale=3)
plt.show()

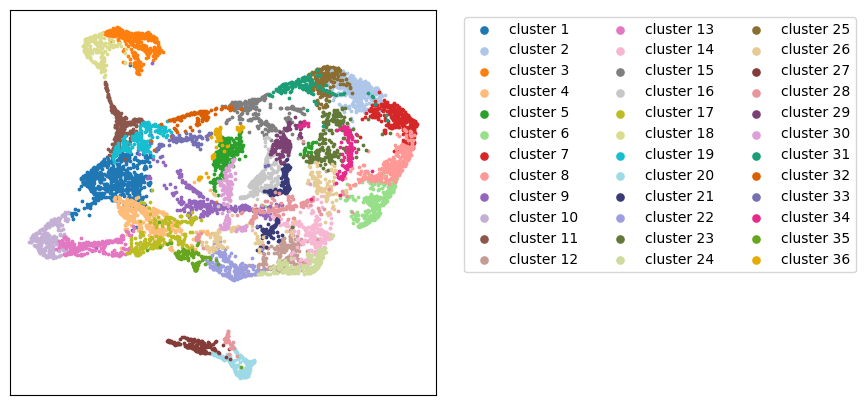

# umap, louvain
f = plt.figure(figsize=(5.5,5))
ax = f.add_subplot(1,1,1)
n_louvain = len(set(adata_full.obs["louvain"]))
colors = rgb2hex
for i in range(n_louvain):
ax.scatter(embedding[adata_full.obs["louvain"].values.astype(str)==str(i), 0],
embedding[adata_full.obs["louvain"].values.astype(str)==str(i), 1],
s=size, c=colors[i], label="cluster "+str(i+1))
ax.tick_params(axis='both',bottom=False, top=False, left=False, right=False, labelleft=False, labelbottom=False, grid_alpha=0)
plt.legend(markerscale=3, ncol=3, bbox_to_anchor=(2,1))
plt.show()
Visualization of spatial domain identification result.

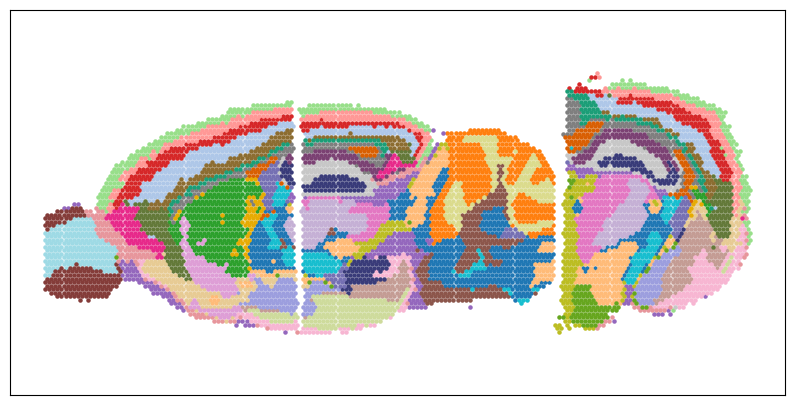

[13]:
# spatial regions
size = 5.
f = plt.figure(figsize=(10,5))
ax = f.add_subplot(1,1,1)
ax.axis('equal')
colors = rgb2hex
for i in range(n_louvain):
ax.scatter(adata_full.obsm["spatial"][adata_full.obs["louvain"].values.astype(str)==str(i), 0],
-adata_full.obsm["spatial"][adata_full.obs["louvain"].values.astype(str)==str(i), 1],
s=size, c=colors[i], label="cluster "+str(i))
ax.tick_params(axis='both',bottom=False, top=False, left=False, right=False, labelleft=False, labelbottom=False, grid_alpha=0)
plt.show()
Save results
[14]:
res_path = "Results/INSPIRE_brain_different_views"
adata_full.write(res_path + "/adata_inspire.h5ad")
basis_df.to_csv(res_path + "/basis_df_inspire.csv")
[ ]:
