Spatially register the two STARmap PLUS slices with rigid transformation

import pandas as pd
import numpy as np
import scanpy as sc
import anndata as ad
import umap
import os
import matplotlib.pyplot as plt
import matplotlib as mpl
from matplotlib.cm import get_cmap

import INSPIRE

Load results

res_path = "Results/INSPIRE_registration_starmapplus"
adata = sc.read_h5ad(res_path + "/adata_inspire.h5ad")

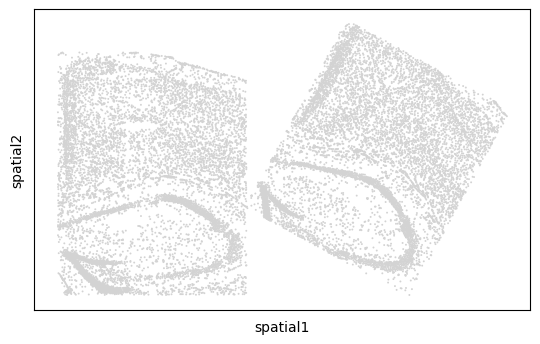

sc.pl.spatial(adata, spot_size=200)

Find anchor cells (MNN cells across slices in the latent space)

adata_0 = adata[adata.obs["slice"]==0, :]
adata_1 = adata[adata.obs["slice"]==1, :]

loc0 = adata_0.obsm["spatial"]
loc1 = adata_1.obsm["spatial"]

latent_0 = adata_0.obsm['latent']
latent_1 = adata_1.obsm['latent']

mnn_mat = INSPIRE.utils.acquire_pairs(latent_0, latent_1, k=1, metric='euclidean')
idx_0 = []
idx_1 = []
for i in range(mnn_mat.shape[0]):
    if np.sum(mnn_mat[i, :]) > 0:
        nns = np.where(mnn_mat[i, :] == 1)[0]
        for j in list(nns):
            idx_0.append(i)
            idx_1.append(j)
loc0_pair = loc0[idx_0, :]
loc1_pair = loc1[idx_1, :]

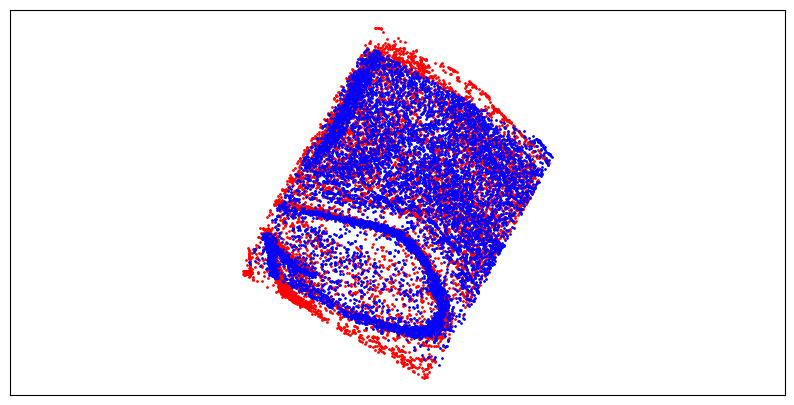

Register slice 1 onto slice 2

T,_,_ = INSPIRE.utils.best_fit_transform(loc0_pair, loc1_pair)
loc0_new = INSPIRE.utils.transform(loc0, T)

f = plt.figure(figsize=(10,5))
ax = f.add_subplot(1,1,1)
ax.axis('equal')
ax.scatter(loc0_new[:,0], -loc0_new[:,1], c="red", s=1)
ax.scatter(loc1[:,0], -loc1[:,1], c="blue", s=1)
ax.tick_params(axis='both',bottom=False, top=False, left=False, right=False, labelleft=False, labelbottom=False, grid_alpha=0)
plt.show()

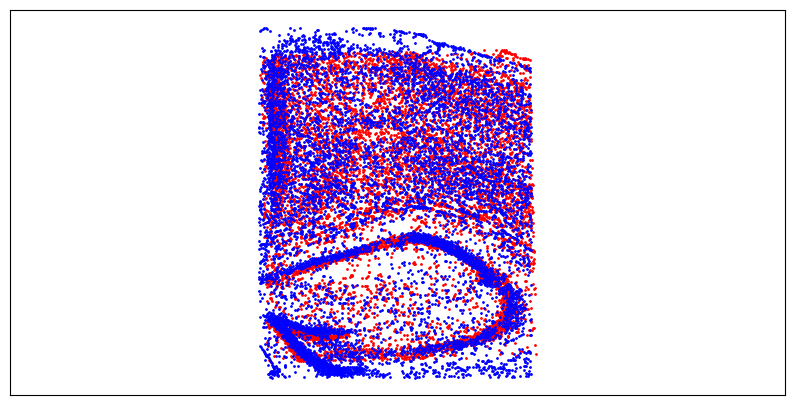

Register slice 2 onto slice 1

T,_,_ = INSPIRE.utils.best_fit_transform(loc1_pair, loc0_pair)
loc1_new = INSPIRE.utils.transform(loc1, T)

f = plt.figure(figsize=(10,5))
ax = f.add_subplot(1,1,1)
ax.axis('equal')
ax.scatter(loc1_new[:,0], -loc1_new[:,1], c="red", s=1)
ax.scatter(loc0[:,0], -loc0[:,1], c="blue", s=1)
ax.tick_params(axis='both',bottom=False, top=False, left=False, right=False, labelleft=False, labelbottom=False, grid_alpha=0)
plt.show()

Save result

adata_0.obsm["loc_aligned"] = loc0
adata_1.obsm["loc_aligned"] = loc1_new

res_path = "Results/INSPIRE_registration_starmapplus"
adata_0.write(res_path + "/adata_st_list_0_loc_aligned.h5ad")
adata_1.write(res_path + "/adata_st_list_1_loc_aligned.h5ad")
